ZK5166 High temp vacuum forming tooling board,carbon fiber tooling board, checking fixture tooling board
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Compressive Strength: | ≥90 MPa | Material: | Pu Resin,aluminum Powder |
|---|---|---|---|
| Cnc Machinable: | Very Easily Machined | Surface Finish: | Smooth And Paintable |
| Density: | 1.7 G/cm3 | Hardness: | Shore D 85-90 |
| Color: | Beige,ivory | Chemical Resistance: | Excellent |

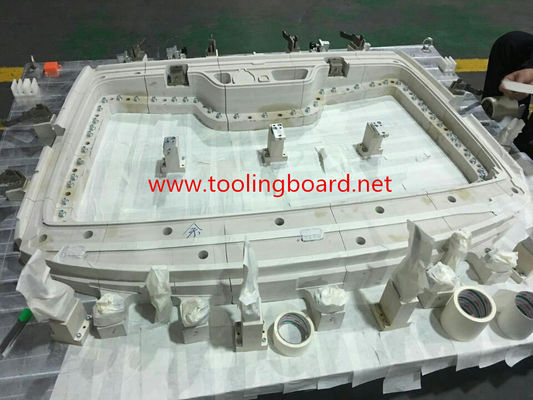

ZK5166 is a high temp polyurethane tooling board with low dust,smooth surface,stable dimension and high performances.It is used for high temperature applications,such as, vacuum forming tools,carbon fiber molds, checking fixtures, thermoforming,metal stamping tools. ZK5166 is one the most popular tooling boards in China.
| Model NO. | ZK5166 |
| Color | beige/grey |
| Density(g/cm3) | 1.7 |
| Hardness(Shore D) | 85-90 |
| Coefficient of thermal expansion(10-6 K-1) | 45-50 |
| Thermal variant temperature(°C) | 95-105 |
| Compressive strength(N/mm²) | 90-100 |
| Flexural strength(N/mm²) | 80-90 |
| Tensile strength(N/mm²) | 30-40 |
| Key Properties | 1. Very easily machined |
| 2. Good temperature resistance | |
| 3. High impact and good edge strength | |
| 4. Excellent good compressive strength | |
| Applications | 1. Metal forming tools,Foam molds |
| 2. Sheet metal stamping | |
| 3. Fixtures and gauges | |
| Dimension(mm) | 750 x 500 x (35/50/60/75/100) |
| 1000 x 500 x (35/50/60/75/100) |
