ZK700 high temp epoxy tooling board for vacuum forming molds, temp resistance up to 150°C
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Compressive Strength: | ≥55 MPa | Material: | Epoxy Tooling Board |
|---|---|---|---|
| Cnc Machinable: | Easily Processing | Surface Finish: | Smooth |
| Density: | 0.7 G/cm3 | Hardness: | Shore D 73-78 |
| Color: | Brown,Blue,Green | Application: | High Temperature Lay-up Tools,vacuum Forming Molds |
ZK700 is a high temp epoxy tooling Board for vacuum forming molds, temp resistance up to 150°C.It is a good choice for use in high temperature lay-up tools and parts,carbon fiber moulds,vacuum forming molds,thermoforming,metal stamping,checking fixtures and jigs.
If you are using modeling and tooling board RENSHAPE 5060 NECURON 690 702,OBO 750 850,RAMPF WB 0691, SIKA LAB 973, our work board ZK700 is also your ideal alternative to them. The price of ZK700 is much lower than them. We have a lot of ZK700 stock ready for ship.
| Model NO. | ZK700 |
| Color | brown,blue,green |
| Density(g/cm3) | 0.7 |
| Hardness(Shore D) | 73-78 |
| Coefficient of thermal expansion(10-6 K-1) | 35-45 |
| Thermal variant temperature(°C) | 140-150 |
| Compressive strength(N/mm²) | 50-55 |
| Flexural strength(N/mm²) | 35-40 |
| Tensile strength(N/mm²) | 25-30 |
| Key Properties | 1. Very fine surface structure |
| 2. High temperature resistant,up to150℃ | |
| 3. Excellent dimension stability | |
| Applications | 1. Master and copy models |

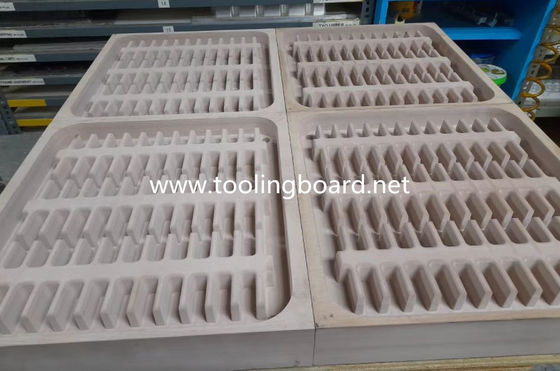

| 2. Vacuum forming molds | |
| 3. Lay-up tools for prepreg,carbon fiber molds | |
| Dimension(mm) | 750 x 500 x(50/75/100) |
| 1500 x 500 x(50/75/100) bigger size can be customized |
