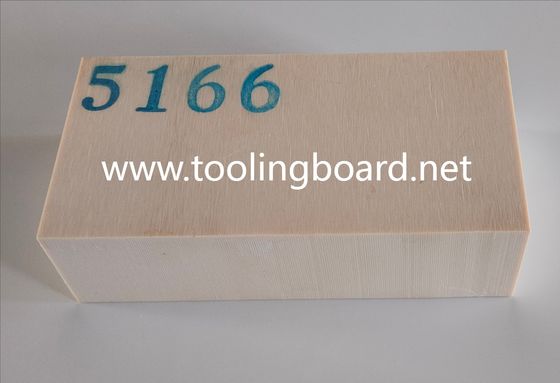

High temperature Tooling Board 5166,smooth surface, stable dimension,low CTE,mainly used for auto inspection tool
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Compressive Strength: | ≥90 MPa | Material: | PU Tooling Board |
|---|---|---|---|
| Cnc Machinable: | Yes | Surface Finish: | Smooth |
| Density: | 1.7 G/cm3 | Hardness: | Shore D 85-90 |
| Color: | Beige,ivory | Chemical Resistance: | Excellent |

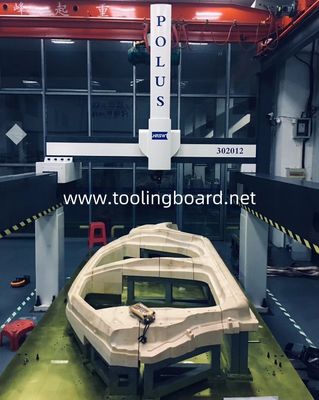

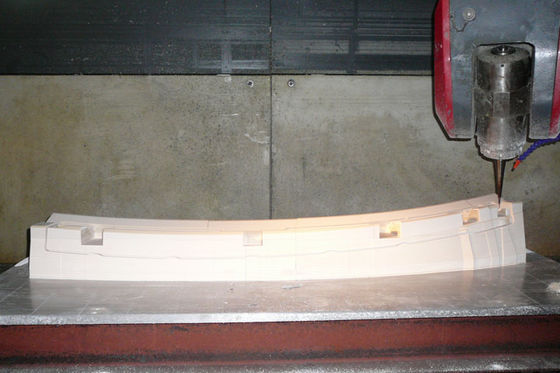

High temperature ZK-tool®5166 is a pu tooling board with low dust,smooth surface,stable dimensionand high performances.It is used for high temperature lay-up tools and parts, thermoforming,metal stamping,automotive inspection tools and gauges. ZK5166 is one the most popular tooling boards in China.
| Model NO. | ZK-tool®5166 |
| Color | beige/grey |
| Density(g/cm3) | 1.7 |
| Hardness(Shore D) | 85-90 |
| Coefficient of thermal expansion(10-6 K-1) | 45-50 |
| Thermal variant temperature(°C) | 95-105 |
| Compressive strength(N/mm²) | 90-100 |
| Flexural strength(N/mm²) | 80-90 |
| Tensile strength(N/mm²) | 30-40 |
| Key Properties | 1. Very easily machined |
| 2. Good temperature resistance | |
| 3. High impact and good edge strength | |
| 4. Excellent good compressive strength | |
| Applications | 1. Metal forming tools,Foam molds |
| 2. Sheet metal stamping | |
| 3. Fixtures and gauges | |
| Dimension(mm) | 750 x 500 x (35/50/60/75/100) |
| 1000 x 500 x (35/50/60/75/100) |
