High Temp Tooling Board ZK700 Density 0.7 g/cm3 Hardness Shore D 73-78 and 35-45 Thermal Expansion

High temp tooling board ZK700 is a rigid medium density epoxy tooling board, it has stable dimension,low CTE, and good temp resistance, up to 150°C.It is ideal for use in high temperature lay-up tools and parts,carbon fiber moulds,vacuum forming molds,thermoforming,metal stamping,checking fixtures and jigs.

If you are using high temperature tooling board RENSHAPE 5060 NECURON 690 702,OBO 750 850,RAMPF WB 0691, SIKA LAB 973, our work board ZK700 is also your ideal alternative to them. The price of ZK700 is much lower than them. We have a lot of ZK700 stock ready for ship.

Model NO.	ZK700
Color	brown,blue,green
Density(g/cm3)	0.7
Hardness(Shore D)	73-78
Coefficient of thermal expansion(10-6 K-1)	35-45
Thermal variant temperature(°C)	140-150
Compressive strength(N/mm²)	50-55
Flexural strength(N/mm²)	35-40
Tensile strength(N/mm²)	25-30
Key Properties	1. Very fine surface structure
	2. High temperature resistant,up to150℃
	3. Excellent dimension stability

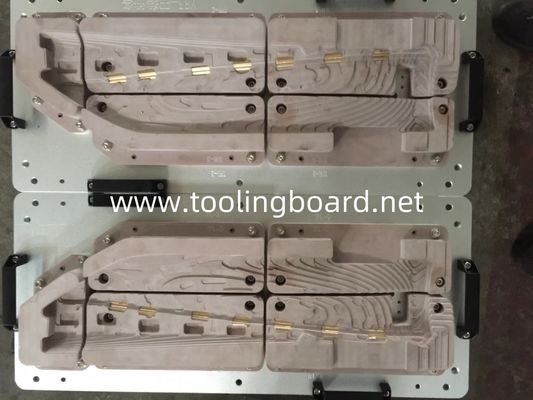

Applications	1. Master and copy models
	2. Vacuum forming molds

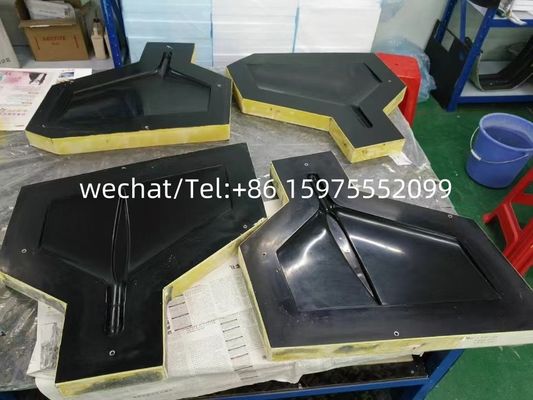

	3. Lay-up tools for prepreg,carbon fiber molds
Dimension(mm)	750 x 500 x(50/75/100)
	1500 x 500 x(50/75/100) bigger size can be customized
