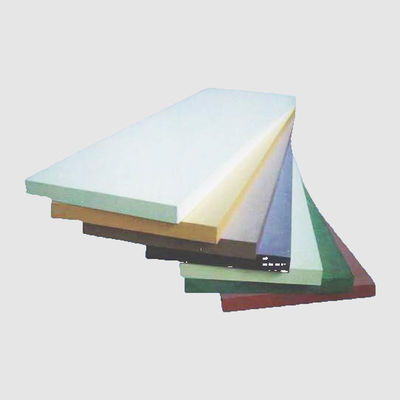

ZK950 high temperature epoxy resin board for lay-up tools for prepregs, temp resistance up to 200°C
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Compressive Strength: | ≥70 MPa | Material: | Epoxy Resin |
|---|---|---|---|
| Cnc Machinable: | Yes | Surface Finish: | Smooth |
| Density: | 0.95 G/cm3 | Hardness: | Shore D 77-82 |
| Color: | Brown,Beige,Blue,Green | Application: | Carbon Fiber Molds, Lay-up Tools For Prepregs |

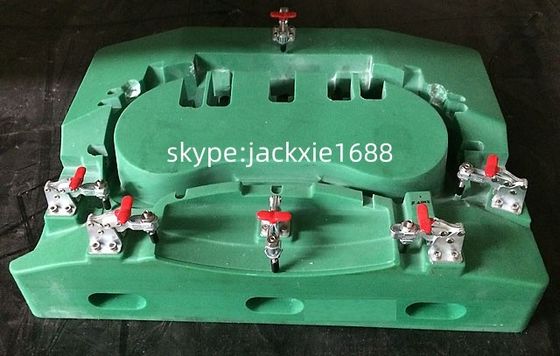

ZK950 is a high temperature epoxy resin board with density 0.95g/cm3, temp resistance up to 200°C. It is a good choice for use in high temperature applications. Such as, thermoforming, lay-up tools and parts, carbon fiber moulds,metal stamping,checking fixtures and jigs.
| Model NO. | ZK950 |
| Color | brown,blue |
| Density(g/cm3) | 0.95 |
| Hardness(Shore D) | 77-82 |
| Coefficient of thermal expansion(10-6 K-1) | 25-35 |
| Thermal variant temperature(°C) | 190-200 |
| Compressive strength(N/mm²) | 70-80 |
| Flexural strength(N/mm²) | 40-50 |
| Key Properties | 1. Very fine surface structure |
| 2. High temperature resistant,up to 200℃ | |
| 3. Excellent dimension stability | |
| Applications | 1. Carbon fiber molds |
| 2. Vacuum forming molds | |
| 3. Lay-up tools for prepreg | |
| Dimension(mm) | 1000 x 500 x(50/75/100) |
| 1500 x 500 x(50/75/100~200) bigger size can be customized |
