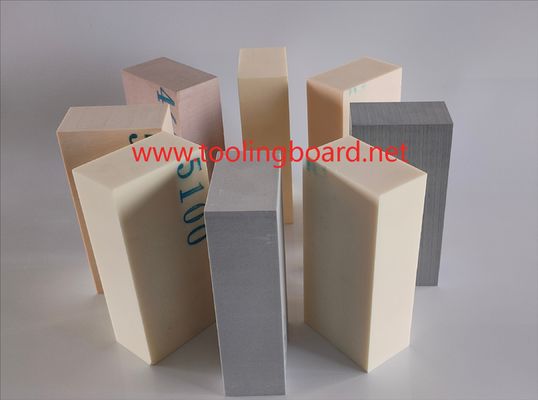

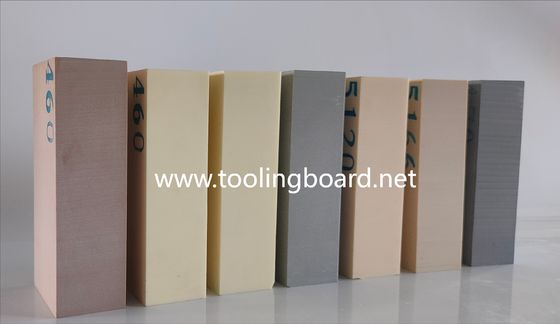

ZK Epoxy tooling boards can bear 200℃ and are ideal work board materials for high temperature applications
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Compressive Strength: | ≥70 MPa | Material: | Epoxy Resin |
|---|---|---|---|
| Cnc Machinable: | Yes | Surface Finish: | Smooth |
| Density: | 0.95 G/cm3 | Hardness: | Shore D 77-82 |
| Color: | Brown,Beige,Blue,Green | Application: | Carbon Fiber Molds, Checking Fixtures For Ultrasonic Welding |
ZK Epoxy tooling boards can bear 200℃ and are ideal working board materials for high temperature applications. ZK tooling boards combine high quality with outstanding mechanical properties and can produce super accurate models and mouds. ZK Epoxy tooling boards are available in various thicknesses and up to 200mm.
| Model NO. | ZK950 |
| Color | brown,blue |
| Density(g/cm3) | 0.95 |
| Hardness(Shore D) | 77-82 |
| Coefficient of thermal expansion(10-6 K-1) | 25-35 |
| Thermal variant temperature(°C) | 190-200 |
| Compressive strength(N/mm²) | 70-80 |
| Flexural strength(N/mm²) | 40-50 |
| Key Properties | 1. Very fine surface structure |
| 2. High temperature resistant,up to 200℃ | |
| 3. Excellent dimension stability | |
| Applications | 1. Carbon fiber molds |
| 2. Checking fixtures for ultrasonic welding | |
| 3. Lay-up tools for prepreg | |
| Dimension(mm) | 1000 x 500 x(50/75/100) |
| 1500 x 500 x(50/75/100~200) bigger size can be customized |
