ZK5300AB extrudable epoxy paste applied by machine used for boat,yacht, auto master model
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Density: | 0.7-0.8 G/cm3 | Color: | Brown |
|---|---|---|---|
| Handling Way: | Applied By Extrudable Machine | Application: | Auto, Plane, Boat, Yacht, Wind Power Blad Mold |

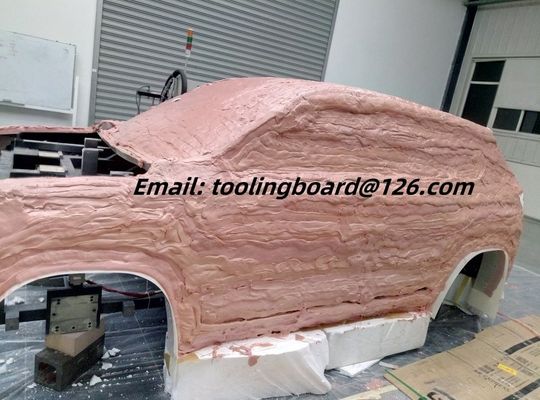

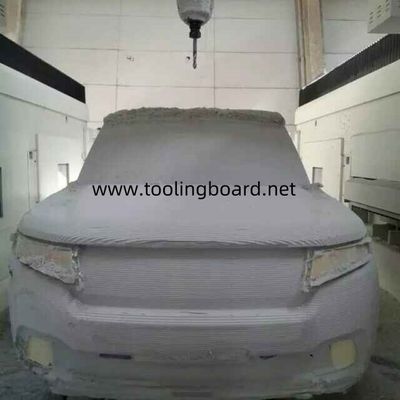

Epoxy modeling paste ZK-tool®5300A/B applied by machine, once milled, no joints or voids are visible. They are widely used for models and moulds in automotive, boat building, aircraft construction or wind power blade mold.
Dongguan ZEEK New Materials Co., Ltd is your reliable supplier for seamless modelling and tooling pastes from China.
www.toolingboard.net ; Email: toolingboard@126.com; Skype: jackxie1688, Tel: +86 15975552099
Model: ZK-tool®5300A/B
| Material | 5300A | 5300B | Mixed |
| Description | epoxy resin | curing agent | |
| mixing ration | 1 | 1 | |
| Color: | brown or other | white | brown or other |
| mixed time:500g,25°(min) | 30 | ||
| curing time before machining(20-25mm) (hours) | 6-8 | ||
| layer thickness (mm) | max.40 | ||
| Density:(g/cm³): | 0.7-0.8 | ||
| Hardness(Shore D): | 65-70 | ||
| Temperature Resistance(°C): | 70-75 | ||
| Coefficient of Thermal Expansion(10-6 K-1): | 45-50 | ||
| Compressive Strength(N/mm²): | 16.2 | ||
| Flexural Strength(N/mm²): | 19.2 | ||
| Tensile Strength(N/mm²): | 12.4 | ||
| Package(L) | 200L per barrel | 200L per barrel |
Characteristics: very easily shaped and machined, excellent dimension stability
Applications: auto master model,yacht model,benchmark model, system and sand-cast model, rapid prototype,etc
