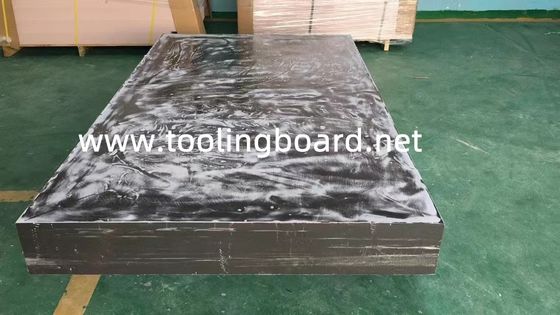

ZK1700, high density high temperature polyurethane tooling board,can be used for stamping mold
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Temperature Resistance: | Up To 130°C | Size: | 750x500,1000x500, 1500x500 |
|---|---|---|---|
| Cnc Machinable: | Easily Processing | Density: | 1.7 G/cm3 |
| Surface: | Smooth | Material: | Polyurethane |
| ApplicationPrototyping, Modeling, Tooling: | Metal Forming Tools,Foam Molds,Sheet Metal Stamping | Thickness: | 35mm-100mm |
ZK1700 is a high density high temperature polyurethane tooling board, similar to Rampf WB1700. It has good abrasion resistance and high compression strength, can be used for stamping mold,metal forming tools,carbon fiber molds and other high temp applications.
Dongguan ZEEK New Materials Co., Ltd is the leading supplier of customized epoxy resin, polyurethane resin board in China.
| Model NO. | ZK1700 |
| Color | Black |
| Density(g/cm3) | 1.7 |
| Hardness(Shore D) | 85-90 |
| Coefficient of thermal expansion(10-6 K-1) | 40-45 |
| Thermal variant temperature(°C) | 120-130 |
| Compressive strength(N/mm²) | 125-130 |
| Flexural strength(N/mm²) | 80-85 |
| Key Properties | 1. Very easily machined |
| 2. Good temperature resistance | |
| 3. High impact and good edge strength | |
| 4. Excellent good compressive strength | |
| Applications | 1. Metal forming tools,Foam molds |
| 2. Sheet metal stamping | |

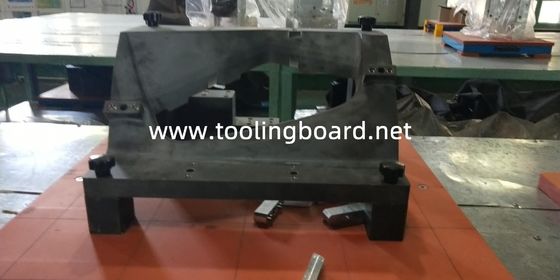

| 3. Fixtures and gauges | |
| Dimension(mm) | 750 x 500 x (35/50/60/75/100) |
| 1000 x 500 x (35/50/60/75/100) |
