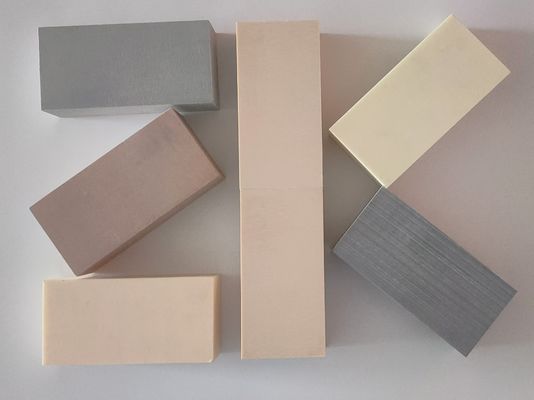

ZK5266 High temp polyurethane tooling Board for carbon fiber molds, heat resistance up to 150°C
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Compressive Strength: | ≥90 MPa | Material: | PU Tooling Board |
|---|---|---|---|
| Cnc Machinable: | Yes | Surface Finish: | Smooth |
| Density: | 1.7 G/cm3 | Hardness: | Shore D 85-90 |
| Color: | Beige | Chemical Resistance: | Excellent |
ZK5266 is a high temp polyurethane tooling Board for carbon fiber molds, heat resistance up to 150°C.It is a good choice for use in high temperature lay-up tools and parts, carbon fiber moulds,thermoforming,metal stamping,checking fixtures and gauges.
| Part NO. | ZK5266 |
| Color | beige |
| Density(g/cm3) | 1.7 |
| Hardness(Shore D) | 87-92 |
| Coefficient of thermal expansion(10-6 K-1) | 40-45 |
| Thermal variant temperature(°C) | 130-150 |
| Compressive strength(N/mm²) | 110-130 |
| Flexural strength(N/mm²) | 90-100 |
| Key Properties | 1. Very easily machined |
| 2. Good temperature resistance | |
| 3. High impact and good edge strength | |
| 4. Excellent good compressive strength | |
| Applications | 1. Metal forming tools,carbon fiber molds |
| 2. Sheet metal stamping | |

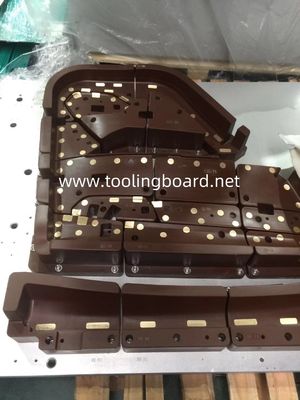

| 3. Fixtures and gauges | |
| Dimension(mm) | 750 x 500 x (35/50/75/100) |
| 1000 x 500 x (35/50/75/100) |
