What is tooling board?What's the price of resin tooling board?Where to buy tooling board?
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Density: | 0.6-1.7 G/cm3 | Material: | Epoxy Resin |
|---|---|---|---|
| Hardness: | ~90 Shore D | Stability: | Dimensionally Stable |
| Surface Finish: | Smooth | Temperature Resistance: | Up To 150°C |
| Dimension: | Customizable | Application: | Prototype,Model, Mold,Mould |
What is tooling board?What's the price of resin tooling board?Where to buy tooling board?
Tooling board, also named resin board, chemical wood, modeling board or epoxy and pu tooling board, is a material made from epoxy or pu resin ant other filler, used mainly for making patterns, prototype, master model,checking fixtures,stamping mould, casting die,vacuum forming mold.
In general, Tooling Board is made from hollow glass microspheres, epoxy or PU resins, hardeners,aluminum power and other fillers. The fillers vary according to different density and other character.

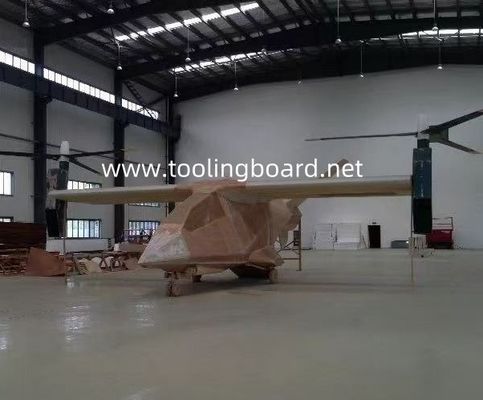

Tooling boards are widely used for new mold, model, gauge, fixture in the field of Automotive, Aerospace, Shipbuilding industry, Wind power, Household.appliances, Toys,Ceramics,etc.
What's the price of resin tooling board?Where to buy tooling board? Zeek is your first-choice for tooling boards.
We provide high quality boards material with low economical price, welcome all customer to contact us freely.
| Model NO. | ZK-tool®460 |
| Color | brown/beige |
| Density(g/cm3) | 0.7 |
| Hardness(Shore D) | 68-73 |
| Coefficient of thermal expansion(10-6 K-1) | 45-55 |
| Thermal variant temperature(°C) | 75-80 |
| Compressive strength(N/mm²) | 50-55 |
| Flexural strength(N/mm²) | 35-40 |
| Tensile strength(N/mm²) | 25-30 |
| Key Properties | 1. Very fine surface structure |

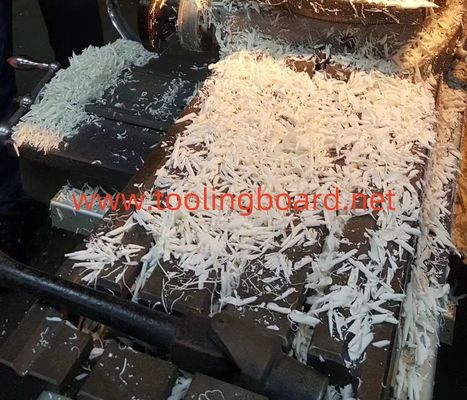

| 2. Very easily machined | |
| 3. Excellent dimension stability | |

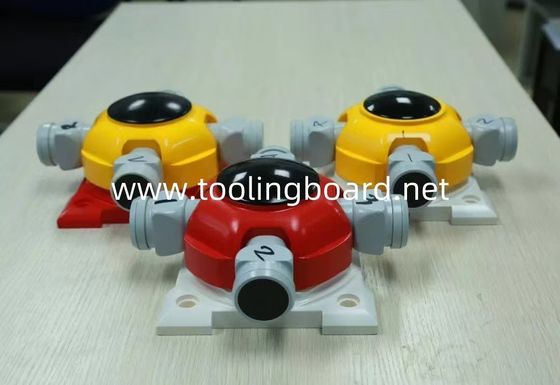

| Applications | 1. Master and copy models |
| 2. Vacuum forming molds | |

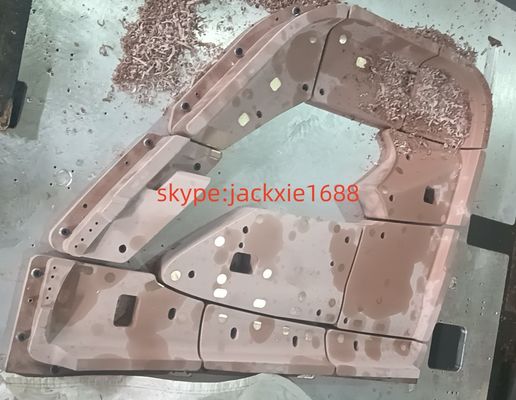

| 3. Fixtures and gauges | |
| Dimension(mm) | 750 x 500 x(50/75/100) |
| 1500 x 500 x(50/75/100) |
