Epoxy Tooling Board factory, polyurethane tooling board factory from China, we provide customized service
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Density: | 0.6-1.7 G/cm3 | Material: | Epoxy Resin |
|---|---|---|---|
| Hardness: | ~90 Shore D | Stability: | Dimensionally Stable |
| Surface Finish: | Smooth | Temperature Resistance: | Up To 150°C |
| Dimension: | Customizable | Application: | Prototype,Model, Mold,Mould |

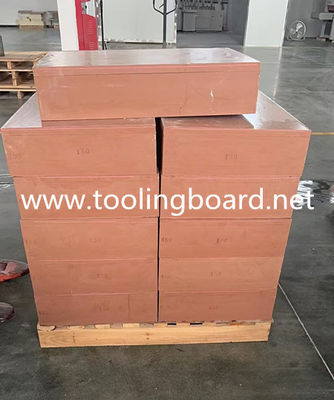

Dongguan ZEEK New Materials Co., Ltd is your first-choice epoxy modeling board and polyurethane tooling board factory from China, we can provide customized service. We have developed more than 1000 different size molds. We can provide neutral packing or custom logo, various standard or customized shapes and sizes,standard board dimensions from diameter 300~600mm, 750x500x50-100mm,1000x500x50-100mm to 2000 x 1200 x 220 mm,other larger size also can be customized. The size of tooling board as below is 1500x1000x400mm.
| Model NO. | ZK-tool®460 |
| Color | brown/beige |
| Density(g/cm3) | 0.7 |
| Hardness(Shore D) | 68-73 |
| Coefficient of thermal expansion(10-6 K-1) | 45-55 |
| Thermal variant temperature(°C) | 75-80 |
| Compressive strength(N/mm²) | 50-55 |
| Flexural strength(N/mm²) | 35-40 |
| Tensile strength(N/mm²) | 25-30 |
| Key Properties | 1. Very fine surface structure |
| 2. Very easily machined | |
| 3. Excellent dimension stability | |
| Applications | 1. Master and copy models |
| 2. Vacuum forming molds | |
| 3. Fixtures and gauges | |
| Dimension(mm) | 750 x 500 x(50/75/100) |
| 1500 x 500 x(50/75/100) |
