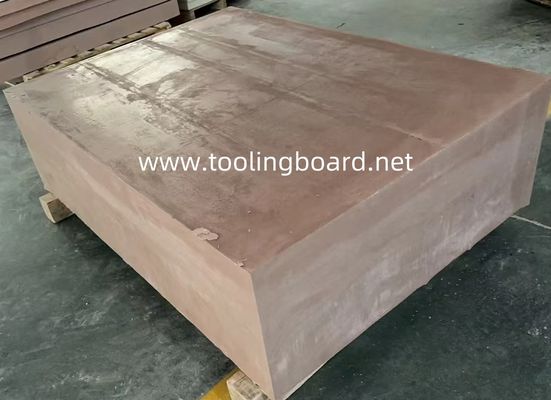

ZK700 Low density but high temp epoxy tooling board for carbon fiber molds, heat resistance up to 150°C
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Compressive Strength: | ≥55 MPa | Material: | Epoxy Tooling Board |
|---|---|---|---|
| Cnc Machinable: | Yes | Surface Finish: | Smooth |
| Density: | 0.7 G/cm3 | Hardness: | Shore D 73-78 |
| Color: | Brown | Chemical Resistance: | Excellent |

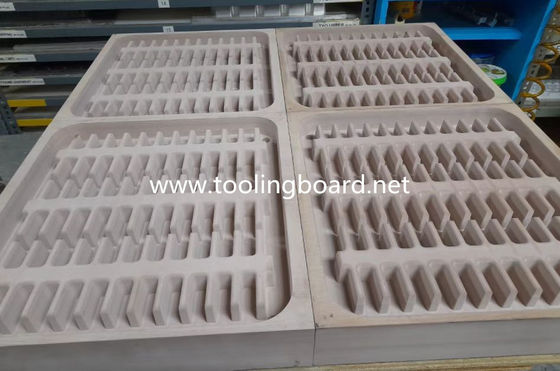

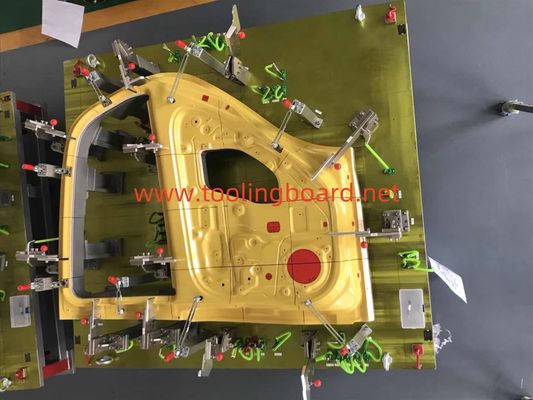

ZK700 is a high temperature low density epoxy tooling Board for carbon fiber molds, heat resistance up to 150°C.It is a good choice for use in high temperature lay-up tools and parts, carbon fiber moulds,thermoforming,metal stamping,checking fixtures and gauges.
If you are using modeling and tooling board RENSHAPE 5060 NECURON 690 702,OBO 750 850,RAMPF WB 0691, SIKA LAB 973, our work board ZK700 is also your ideal alternative to them. We have a lot of stock ready for ship.
| Model NO. | ZK700 |
| Color | brown |
| Density(g/cm3) | 0.7 |
| Hardness(Shore D) | 73-78 |
| Coefficient of thermal expansion(10-6 K-1) | 35-45 |
| Thermal variant temperature(°C) | 140-150 |
| Compressive strength(N/mm²) | 50-55 |
| Flexural strength(N/mm²) | 35-40 |
| Tensile strength(N/mm²) | 25-30 |
| Key Properties | 1. Very fine surface structure |
| 2. High temperature resistant,up to150℃ | |
| 3. Excellent dimension stability | |
| Applications | 1. Master and copy models |
| 2. Vacuum forming molds | |
| 3. Lay-up tools for prepreg | |
| Dimension(mm) | 750 x 500 x(50/75/100) |
| 1500 x 500 x(50/75/100) bigger size can be customized |
