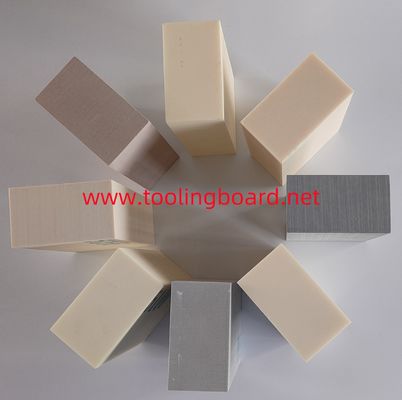

ZK-Tool ZK450 Low Density Epoxy Resin Board for Prototype and Foundry Casting Mould
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Lightweight And Durable | Non-Toxic: | Yes |
|---|---|---|---|
| Quantity: | 10 PCS | Color: | Brown,Beige |
| Thickness: | 30-100mm | Usage: | Fiberglass Molds,FRP Mould,Fourdry Casting Mould |
| Material: | Epoxy Resin | Size: | 1500x500x50/75/100mm |
ZK450 is a low density epoxxy resin tooling board. can be easily CNC machined. It is a economical choice for model making and fiberglass molds,fiberglass reinforced plastics (FRP)molds and foundry casting moulds.
| Model NO. | ZK450 |
| Color | brown/beige |
| Density(g/cm3) | 0.7 |
| Hardness(Shore D) | 60-65 |
| Coefficient of thermal expansion(10-6 K-1) | 50-55 |
| Thermal variant temperature(°C) | 70-80 |
| Compressive strength(N/mm²) | 40-45 |
| Flexural strength(N/mm²) | 25-30 |
| Key Properties | 1. Very fine surface structure |
| 2. Smooth and paintable surface | |
| 3. Excellent processing properties | |

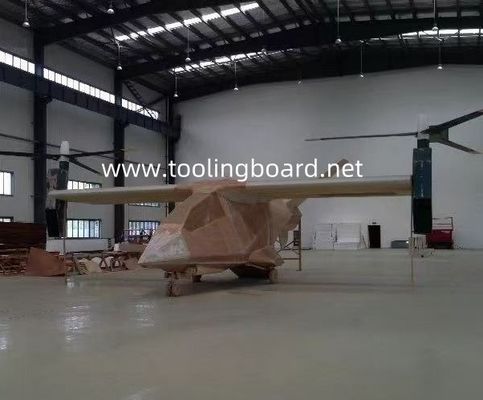

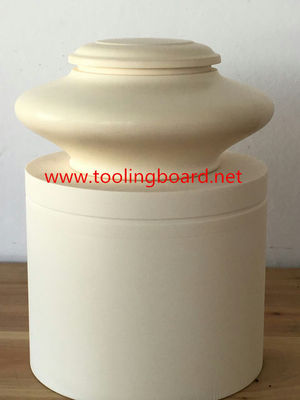

| Applications | 1. Master and copy models |
| 2. Reference model,Sample model | |
| 3. Fiberglass molds,FRP moulds,Foundry casting molds | |
| Dimension(mm) | 750 x 500 x(50/75/100) |
| 1500 x 500 x(50/75/100) |
