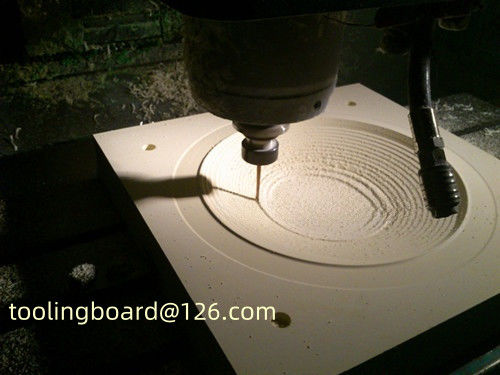

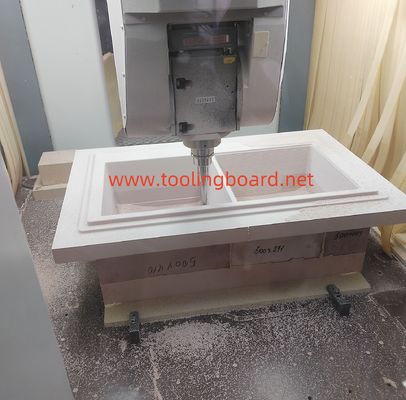

ZK450 low density epoxy resin board, can be easily hand carved or CNC machining,used for soft mold,aluminum mold
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Epoxy Resin Board | Applications: | Model Desin, Rapid Prototype,for Soft Mold,aluminum Mold |
|---|---|---|---|
| Density: | 0.6-0.7 G/cm3 | Thickness: | 35mm 50mm 75mm 100mm |
| Size: | 750*500*50-100mm 1000*500*50-100 1500*500*50-100 | Color: | Brown,White |
ZK450 is is a low density( around 0.7g/cm3), epoxy-based resin board. can be easily CNC machined. It is a economical choice for quick prototype,master model, fixtures,shoe mold,soft mold,aluminum mold.
Dongguan ZEEK New Materials Co., Ltd is the leading supplier of styling, modeling, and working board materials.
| Part NO. | ZK450 |
| Color | brown/beige |
| Density(g/cm3) appr. | 0.7 |
| Hardness(Shore D) | 60-65 |
| Coefficient of thermal expansion(10-6 K-1) | 50-55 |
| Thermal variant temperature(°C) | 70-80 |
| Compressive strength(N/mm²) | 40-45 |
| Flexural strength(N/mm²) | 25-30 |
| Key Properties | 1. Very fine surface structure |
| 2. Smooth and paintable surface | |
| 3. Excellent processing properties | |
| Applications | 1. Master and copy models |
| 2. Reference model,Sample model | |
| 3. Shoe mold,soft mold,aluminum mold | |
| Dimension(mm) | 750 x 500 x(50/60/75/100) |
| 1500 x 500 x(50/60/75/100) |
