Extrudable epoxy paste ZK5300AB, close contour paste applied by mixing and dispensing machine, used for large scale application
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Density: | 0.7-0.8 G/cm3 | Color: | Brown,Beige |
|---|---|---|---|
| Handling Way: | Applied By Mixing And Dispensing Machine | Application: | Car Model, Boat Model, Wind Energy Blades |
ZK5300A/B extrudable epoxy pastes are two-component epoxy systems that are processed and applied using a mixing and dispensing machine.

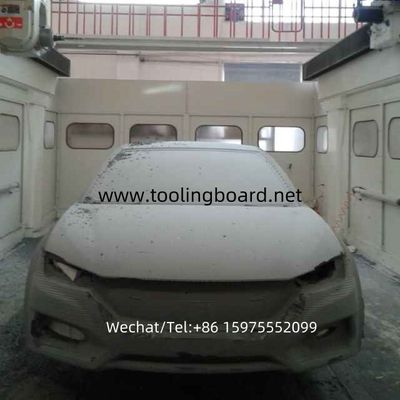

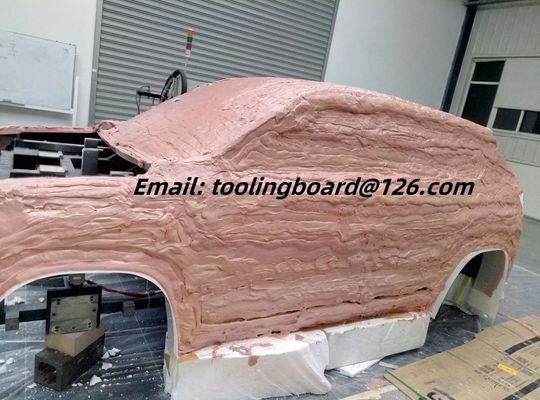

They are applied to a close contour substructure by hand or using a CNC machine. Almost any kind of supporting structure can be used, including ZK150 styling board, EPS, and cast aluminum.
The epoxy tooling pastes are easy processing, with no slump on vertical surfaces. Milling based on CAD data takes place after a brief curing process at room temperature.
Extrudable epoxy modeling pastes application significantly reduces the amount of material, milling, and finishing required and also the quantity of production waste generated, help customer save time and material and money!
| Material | 5300A | 5300B | Mixed |
| Description | epoxy resin | curing agent | |
| mixing ration | 1 | 1 | |
| Color: | brown or other | white | brown or other |
| mixed time:500g,25°(min) | 30 | ||
| curing time before machining(20-25mm) (hours) | 6-8 | ||
| layer thickness (mm) | max.40 | ||
| Density:(g/cm³): | 0.7-0.8 | ||
| Hardness(Shore D): | 65-70 | ||
| Temperature Resistance(°C): | 70-75 | ||
| Coefficient of Thermal Expansion(10-6 K-1): | 45-50 | ||
| Compressive Strength(N/mm²): | 16.2 | ||
| Flexural Strength(N/mm²): | 19.2 | ||
| Tensile Strength(N/mm²): | 12.4 | ||
| Package(L) | 200L per barrel | 200L per barrel |
Characteristics: very easily shaped and machined, excellent dimension stability
Applications: especially for large scale application, such as,auto master model,yacht model,benchmark model, system and sand-cast model, etc
