Extrudable model paste, epoxy tooling paste applied by automatic machine used for model and molds

Tooling paste, also named epoxy paste,model paste, modeling/tooling paste, has two types base on applied ways:one is hand applied, the other is machine applied. ZK5300A/B is the extrudable tooling paste applied by machine. It can be easily machined formulation, producing a fine, seamless surface. Tooling pastes are widely used for models and moulds in automotive, boat building, aircraft construction or wind power blade mold.

Dongguan ZEEK New Materials Co., Ltd is your reliable supplier for seamless epoxy tooling pastes from China.

www.toolingboard.net ; Email: toolingboard@126.com; Skype: jackxie1688, Tel: +86 15975552099



Model: ZK-tool®5300A/B

Material	5300A	5300B	Mixed
Description	epoxy resin	curing agent
mixing ration	1	1
Color:	brown or other	white	brown or other
mixed time:500g,25°(min)			30
curing time before machining(20-25mm) (hours)			6-8
layer thickness (mm)			max.40
Density:(g/cm³):			0.7-0.8
Hardness(Shore D):			65-70
Temperature Resistance(°C):			70-75
Coefficient of Thermal Expansion(10-6 K-1):			45-50
Compressive Strength(N/mm²):			16.2
Flexural Strength(N/mm²):			19.2
Tensile Strength(N/mm²):			12.4

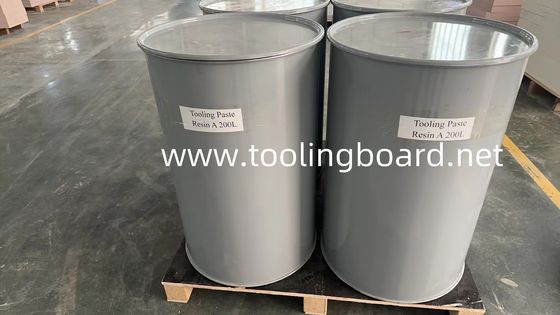

Package(L)	200L per barrel	200L per barrel



Characteristics: very easily shaped and machined, excellent dimension stability

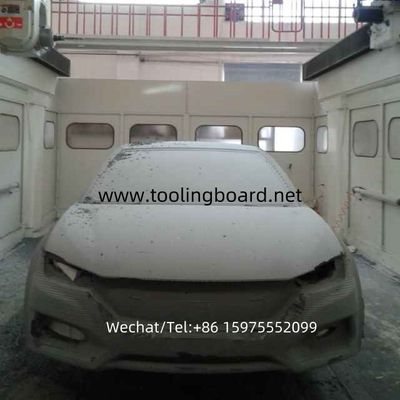

Applications: auto master model,yacht model,benchmark model, system and sand-cast model, rapid prototype,etc
