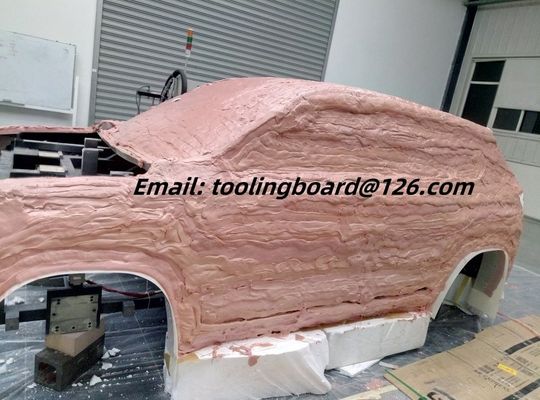

CNC modelling paste ZK5300AB, extrudable epoxy paste applied by machine used for car style, boats, wind mill blades
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Density: | 0.7-0.8 G/cm3 | Color: | Brown,Beige |
|---|---|---|---|
| Handling Way: | Applied By Extrudable Machine | Application: | Car Style, Boats, Wind Energy Blades |
CNC modelling paste ZK-tool®5300A/B are two-compnent epoxy-based resin and hardener. They are machine applied extrudable pastes,used for medium and large model making,such as,car style, boats, wind mill blades.
Dongguan ZEEK New Materials Co., Ltd is your reliable supplier for seamless epoxy tooling pastes from China.
www.toolingboard.net ; Email: toolingboard@126.com; Skype: jackxie1688, Tel: +86 15975552099
Model: ZK-tool®5300A/B
| Material | 5300A | 5300B | Mixed |
| Description | epoxy resin | curing agent | |
| mixing ration | 1 | 1 | |
| Color: | brown or other | white | brown or other |
| mixed time:500g,25°(min) | 30 | ||
| curing time before machining(20-25mm) (hours) | 6-8 | ||
| layer thickness (mm) | max.40 | ||
| Density:(g/cm³): | 0.7-0.8 | ||
| Hardness(Shore D): | 65-70 | ||
| Temperature Resistance(°C): | 70-75 | ||
| Coefficient of Thermal Expansion(10-6 K-1): | 45-50 | ||
| Compressive Strength(N/mm²): | 16.2 | ||
| Flexural Strength(N/mm²): | 19.2 | ||
| Tensile Strength(N/mm²): | 12.4 | ||

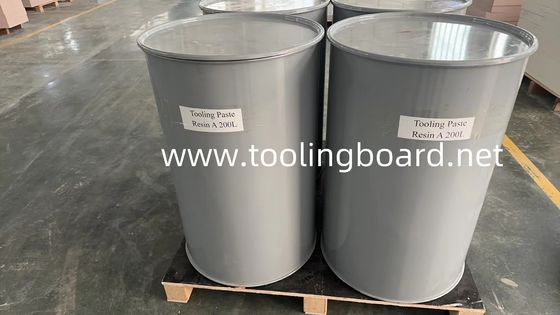

| Package(L) | 200L per barrel | 200L per barrel |
Characteristics: very easily shaped and machined, excellent dimension stability
Applications: auto master model,yacht model,benchmark model, system and sand-cast model, rapid prototype,etc
