ZK-tool 430MB The Perfect Tooling Board for Shoe Model And Sole Mold Manufacturing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Usage: | CNC Machining | Machinability: | Very Easily |
|---|---|---|---|
| Density: | 0.6-0.7 G/cm3 | Color: | Brown,pink |
| Application: | Shoe Pattern,shoe Model,sole Mould | Hardness: | Shore D 55-65 |
| Stability: | Stable Dimension | Dimension: | 1500x500x50/75/100mm |

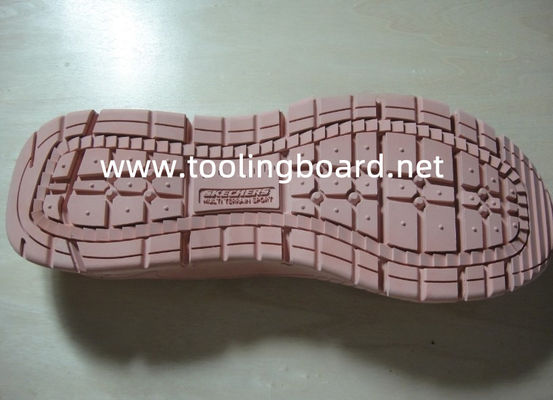

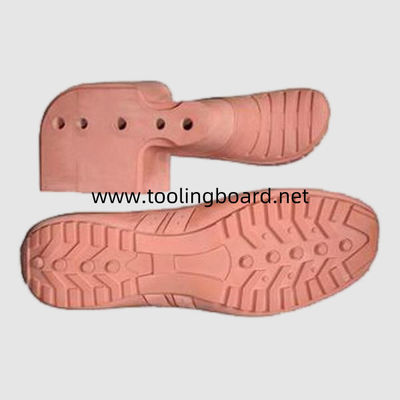

ZK430 is a low density epoxy-based tooling board, can be easily CNC machined and shaped. It is perfect choice for quick prototype,master model, fixtures,shoe model,shoe mold and sole mold.
| Model NO. | ZK430 |
| Color | Brown,pink |
| Density(g/cm3) | 0.65-0.7 |
| Hardness(Shore D) | 60-65 |
| Coefficient of thermal expansion(10-6 K-1) | 50-60 |
| Thermal variant temperature(°C) | 70-80 |
| Compressive strength(N/mm²) | 40-50 |
| Flexural strength(N/mm²) | 25-30 |
| Key Properties | 1. Very fine surface structure |
| 2. Very easily machined | |
| 3. Economical | |
| Applications | 1. Master and copy models |
| 2. Shoe model and sole mold | |
| 3. Benchmark model | |
| Dimension(mm) | 750x500x(40-100) |
| 1500x500x(40-100) |
