ZK5100 High Performance CNC Tooling Board,used for Blow Mould,Vacuum forming mold
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Thickness: | 30-100mm | Surface: | Smooth |
|---|---|---|---|
| Usage: | Blister Mould,Vacuum Forming Mold | Material: | PU |
| Color: | Beige,grey, Ivory | Quantity: | 1 PCS |

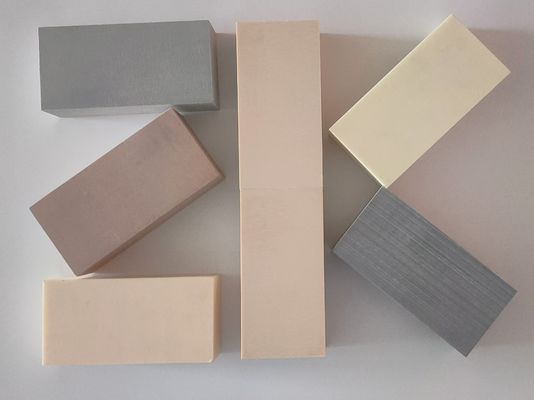

ZK5100 is High Performance CNC Tooling Board with density of 1.0g/cm3, it has good edge strength and heat-resistance, low dust,can be easily CNC machined,is ideal board material to make Blow Mould,Vacuum forming mold,ultrasonic welding mold for Automotive, Aerospace, Household appliances.
http://www.toolingboard.net ; Email: jack_xie@139.com ; Skype: jackxie1688
| Model NO. | ZK5100 |
| Color | beige,light grey,ivory |
| Density(g/cm3) | 1.0 |
| Hardness(Shore D) | 75-80 |
| Coefficient of thermal expansion(10-6 K-1) | 45-50 |
| Thermal variant temperature(°C) | 75-85 |
| Compressive strength(N/mm²) | 70-75 |
| Flexural strength(N/mm²) | 45-50 |
| Key Properties | 1. Very easily machined |
| 2. Low coefficient of thermal expansion | |
| 3. Good edge strength and resistance | |
| Applications | 1. Blister mold, Vacuum forming mold,Hammer forms |
| 2. Pattern plates | |
| 3. Fixtures and jigs | |
| Dimension(mm) | 750 x 500 x (50/75/100) |
| 1000 x 500 x (50/75/100) |
